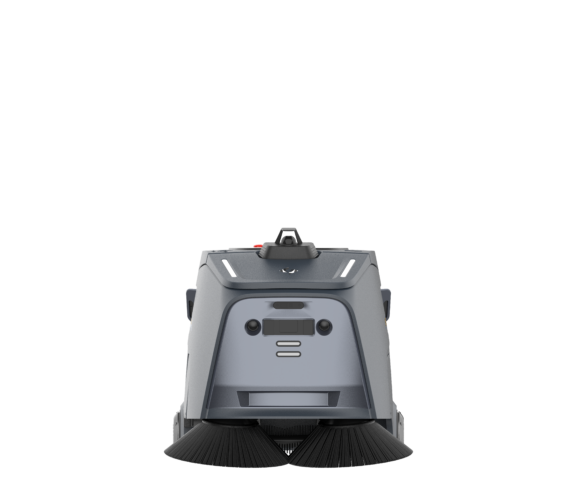

Beetle

Highlights

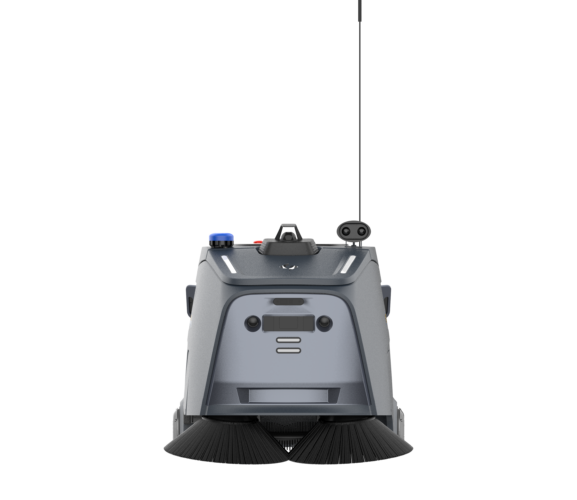

Unique to Pro Version

Safety Configuration

Visibility Flag, Flashing Light, Headlights

Specifications

Dimension

Length

960 mm 37.8 in (w/o side brushes)

990 mm 39.0 in (w/t side brushes)

Width

650 mm 25.6 in (w/o side brushes)

750 mm 29.5 in (w/t side brushes)

Height

680 mm 26.8 in(w/o visibility flag)

1,510 mm 59.4 in (w/t visibility flag)

Net Weight

102 kg 225 lb(Standard)

112 kg 247 lb(Pro)

Cleaning

Cleaning Width

750 mm 29.5 in

Max. Cleaning Efficiency (Theoretical)

3,240 ㎡/h 34,875 ft²/h

Trash Bin Capacity

45 L 11.9 gal

Max. Air Flow Volume

1,320 m³/h

Movement

Edge Cleaning Capability

0 mm 0 in

Gradeability

4.6°

Max. Moving Speed

1.2 m/s 3.9 ft/s

Min. U-Turn Width

1,250 mm 49.2 in

Electrical

Standard

Pro

Battery Capacity

40 Ah

60 Ah

Runtime

3 h

5 h

Charging Time

＜2.5 h

Sensing

Sensor System

3D LiDAR, RGB Camera, RGB-D Camera

Note: The specifications are based on the test results conducted by Gausium; actual performance data may vary in specific applications.
